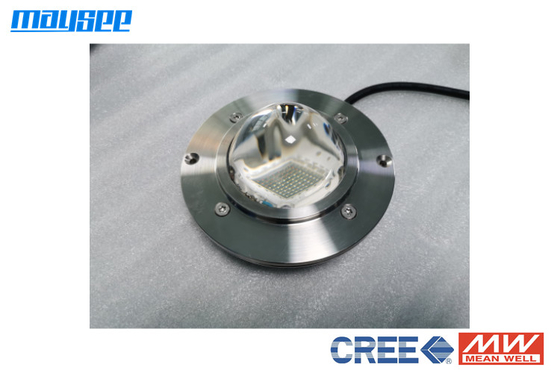

DMX512 CREE Surface Mounted LED Pool Light With Stainless Steel Materials

DMX512 CREE Surface Mounted LED Pool Light With Stainless Steel Materials

DMX512 CREE Surface Mounted LED Pool Light With Stainless Steel Materials
video
DMX512 CREE Surface Mounted LED Pool Light With Stainless Steel Materials
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Maysee
Certification: CE/ROHS
Model Number: MS-UW-RGB-C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: carton box or wooden case
Delivery Time: 10-15 working days upon receipt of the deposit
Payment Terms: T/T or WU or Paypal
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: 316L Stainless Steel Light Color: White/RGB/RGBW
LED Type: CREE Control Mode: DMX512
Drive Mode: Constant Current IP Rating: IP68
Rated Power: 54W Installation: Surface Mounting
High Light:

CREE Surface Mounted LED Pool Light

,

DMX512 Surface Mounted LED Pool Light

,

54W Surface Mounted Deck Light

DMX512 CREE Surface Mounted LED Pool Light With Stainless Steel Materials



120 Degree Beam Angle Surface Mounting LED Deck Light With Stainless Steel Materials Work Underwater lamp

The Light specious design the wide beam angle 120 degree,surface mounting type work in the boat,deck,dock,swimming pool.The light with 316L stianless steel material housing never rust and resitant to corrosion by the seawater.


Specification

Model No.: MS-UW-RGB-C
Power

54W

Input voltage DC12-24V
Drive Mode Constant current CC 4 x 350 mA
Control Mode DMX512
Environment Humidity 0~85%RH
Storage Temp. -40°~+80°
Operating Temp.  -25℃~ +50℃

Dimension(Dia.xH)

¢131mmxH56mm

Cut hole  ¢109mm
Weight 1.5Kg
Material 316L Stainless Steel
Housing Color Silver white
IP Grade IP68
LED Brand CREE /EPISTAR
LED Unit Power 1W
LED Quantity 54 LEDs
Light Source White/RGB/RGBW
Glass Tempered glass
Life Time 30,000 hrs
Niche



2D Drawings


DMX512 CREE Surface Mounted LED Pool Light With Stainless Steel Materials 0
DMX512 CREE Surface Mounted LED Pool Light With Stainless Steel Materials 1




Control Mode

RGB/RGBW Light Control By DMX Controller

The RGB light or RGBW light need to be connectd with the external RGB DMX decoder DCD9 or RGBW DMX decoder DCD8 first. The DCD9 decoder carry 3xRGB lights(9chs), DCD8 carry 2XRGBW lights(8chs). Also, it is able to be used as a dimmer to adjust the light brightness as per the environment demand. The DMX controller connect with DMX decoder, the DMX decoder connect with the lights,all the DMX decoder connect together to set up the complete system. The light will be set the address by the decoder. The DMX decoder have the internal programme to run the color changing,it also is a DMX controller.

DMX512 CREE Surface Mounted LED Pool Light With Stainless Steel Materials 2
White Light Control By Power On/Off
It's a very simple connection between the switch power supply and LED underwater light. It is mainly used for showing the mono-color based on the static & constant working status.
DMX512 CREE Surface Mounted LED Pool Light With Stainless Steel Materials 3




Product Photoes

DMX512 CREE Surface Mounted LED Pool Light With Stainless Steel Materials 4

DMX512 CREE Surface Mounted LED Pool Light With Stainless Steel Materials 5


Before Sale Service

1. We provide a professional offer. Provide detailed product test reports and related specifications.
2. We provide professional-led lighting technology support to meet the requirements of customers about photoelectric color.
3. Within 12 hours of the corresponding customer inquiry, our commissioner will promptly get in touch with the customers.

After-Sale Service

1. Norming Lighting products come with 3-year limited warranty from the date of the purchase by the clients.
2. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only.
3. We could not be held liable for damages to personal property due to misuse or improper care and maintenance of items.
4. There is no fault rate for the items we delivered, if there is a lamp that does not work when you get it, just contact us. If we should be responsible for it after we test, we will replace it for you.
5. We are equipped with a good after service department and never escape our responsibility.
