Adjustable Angle Linear LED Wall Washer Light 12Watt With 120° Convex Lens IP67

Adjustable Angle Linear LED Wall Washer Light 12Watt With 120° Convex Lens IP67

  • Adjustable Angle Linear LED Wall Washer Light 12Watt With 120° Convex Lens IP67
  • Adjustable Angle Linear LED Wall Washer Light 12Watt With 120° Convex Lens IP67
Adjustable Angle Linear LED Wall Washer Light 12Watt With 120° Convex Lens IP67
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Maysee
Certification: CE/ROHS
Model Number: MS-WW-RGB-L1
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton box or wooden case
Delivery Time: 10-15 working days upon receipt of the deposit
Payment Terms: T/T or WU or Paypal
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: Aluminum Light Color: RGB/R/G/B/W
LED Type: Nichia Control Mode: DMX/on-off
Input Voltage: 24VDC IP Rating: IP67
Rated Power: 12w Warranty: 3-year
High Light:

linear led wall washer light

,

color changing led wall washer

Adjustable Angle Linear LED Wall Washer Light 12Watt With 120° Convex Lens IP67



Features

•  High brightness LEDs creates a bright wash of light,projecting up to 65 feet

•  Link up to 30 DMX LED Wall Washer in a single run

•  Link multiple controllers together to create large scale synchronized lighting effects

•  Suitable for heavy duty use(more than 12 hours per day)

•  Can meet the most specific lighting-effect requirements with 16,777,216 possible available colors

•  Mounting gears and simple rotating mechanisms included to aid easy installation and removal.

•  Adjustable angle design and easy installation maximized on site flexibility

•  RGB color-changing modes operating through our DMX controller can handle sophisticated tasks

•  IP65 rated-perfect for both indoor and outdoor applications

• High quality LEDs used,ensuring DMX LED Wall Washer a long life span of over 50,000 hours



Specification

Model No. MS-WW-RGB-L1
Rated Power 12W
Length 1000mm
Net Weight 0.665kg
Q'ty of LEDs 48pcs
Pixels per Bar 8 pixels
DMX Channel per Bar 8X3-CH
Pixel Pitch 20.5mm
WidthxDepth 32mmx38mm
Input Voltage 24VDC
LED Brand Nichia
Lens Convex (102°)
Light Color SMD (3-in-1) or mono-color
Material anodized aluminum housing &  polycarbonate Lens
Bar Intensity 35Lm/W (RGB)
Operating Humidity 0-99%RH
Operation Temperature  -20℃-70℃
Life Time 50,000 hrs
IP Rating IP67
Control Mode DMX512 for RGB version/on-off switch for mono version
Mounting surface-mounting
Warranty 3-year


Service
A. All the inquiries related to linear led wall washer lights will be replied in 24hours;

B. All the private information related to customers' sales market and design concept;
C. Well-trained and experienced staffs to answer all your inquires in fluent English;
D. Distributorship will be offered for customers' unique design or some of our current models;
E. OEM & ODM will be available.



Application

Facades, bridges, sculptures, etc.



DMX Control

DMX Control is mostly preferred by LED wall washer light to decorate a whole building with warm white, color-changing or play various kinds of animation or videos as a good city decoration method. Also, it is able to be used as a dimmer to adjust the light brightness as per the environment demand.

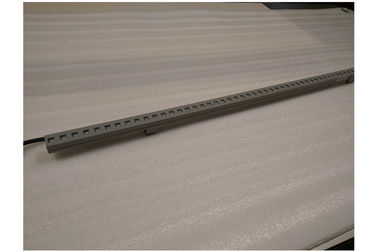

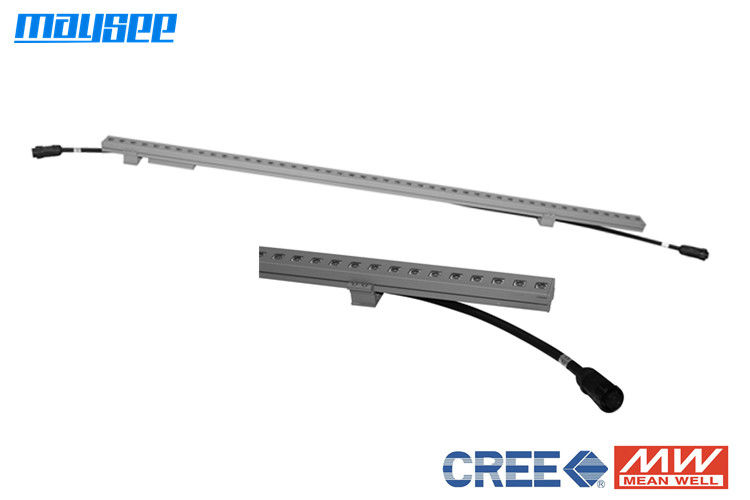

Adjustable Angle Linear LED Wall Washer Light 12Watt With 120° Convex Lens IP67 0



Adjustable Angle Linear LED Wall Washer Light 12Watt With 120° Convex Lens IP67 1



Adjustable Angle Linear LED Wall Washer Light 12Watt With 120° Convex Lens IP67 2







Adjustable Angle Linear LED Wall Washer Light 12Watt With 120° Convex Lens IP67 3



Adjustable Angle Linear LED Wall Washer Light 12Watt With 120° Convex Lens IP67 4
