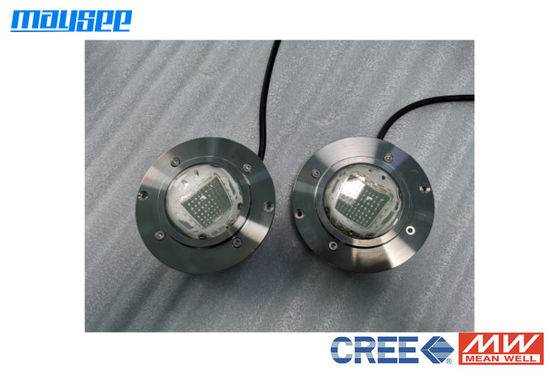

Warm White 3000k LED Surface Mounted Pool Light Underwater 5m Deep

Warm White 3000k LED Surface Mounted Pool Light Underwater 5m Deep

Warm White 3000k LED Surface Mounted Pool Light Underwater 5m Deep
video
Warm White 3000k LED Surface Mounted Pool Light Underwater 5m Deep
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Maysee
Certification: CE/ROHS
Model Number: MS-UW-RGB-C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: carton box or wooden case
Delivery Time: 10-15 working days upon receipt of the deposit
Payment Terms: T/T or WU or Paypal
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: 316L Stainless Steel Light Color: White/RGB/RGBW
LED Type: CREE Control Mode: DMX512
Drive Mode: Constant Current IP Rating: IP68
Rated Power: 54W Installation: Surface Mounting
High Light:

3000k LED Surface Mounted Pool Light

,

CREE LED Wall Mounted Pool Lights

,

5000lm Surface Mounted Pool Lights

Warm White 3000k LED Surface Mounted Pool Light Underwater 5m Deep



54W Warm White 3000k 5000lm LED Swimming Pool Light DC24V Working Underwater 5m Deep



Advantages
1. 316 stainless steel material housing.

2. Each Light pass by IP68 test.

3. All the lights pass by 48h function test and viabration test.

4. CE,Rohs,LVD,UKCA,IP68Certificate.

5. 316L Stainless steel material resistant to corrosion,the light can work in the sea water.

5. CREE LED chip,Meaneall power driver,the best quality part.

6. A complete solution could be offered according to your project.
7. Customized design are welcome.



Specification

Model No.: MS-UW-RGB-C
Power

54W

Input voltage DC12-24V
Drive Mode Constant current CC 4 x 350 mA
Control Mode DMX512
Environment Humidity 0~85%RH
Storage Temp. -40°~+80°
Operating Temp.  -25℃~ +50℃

Dimension(Dia.xH)

¢131mmxH56mm

Cut hole  ¢109mm
Weight 1.5Kg
Material 316L Stainless Steel
Housing Color Silver white
IP Grade IP68
LED Brand CREE /EPISTAR
LED Unit Power 1W
LED Quantity 54 LEDs
Light Source White/RGB/RGBW
Glass Tempered glass
Life Time 30,000 hrs
Niche


2D Drawings


Warm White 3000k LED Surface Mounted Pool Light Underwater 5m Deep 0
Warm White 3000k LED Surface Mounted Pool Light Underwater 5m Deep 1




Control Mode

RGB/RGBW Light Control By DMX Controller

The RGB light or RGBW light need to be connectd with the external RGB DMX decoder DCD9 or RGBW DMX decoder DCD8 first. The DCD9 decoder carry 3xRGB lights(9chs), DCD8 carry 2XRGBW lights(8chs). Also, it is able to be used as a dimmer to adjust the light brightness as per the environment demand. The DMX controller connect with DMX decoder, the DMX decoder connect with the lights,all the DMX decoder connect together to set up the complete system. The light will be set the address by the decoder. The DMX decoder have the internal programme to run the color changing,it also is a DMX controller.

Warm White 3000k LED Surface Mounted Pool Light Underwater 5m Deep 2
White Light Control By Power On/Off
It's a very simple connection between the switch power supply and LED underwater light. It is mainly used for showing the mono-color based on the static & constant working status.
Warm White 3000k LED Surface Mounted Pool Light Underwater 5m Deep 3




Product Photoes

Warm White 3000k LED Surface Mounted Pool Light Underwater 5m Deep 4

Warm White 3000k LED Surface Mounted Pool Light Underwater 5m Deep 5



FAQ:
Q1: Can I have sample for testing?
A: Yes, we can offer sample for testing, just contact us if you have demand.
Q2: Can I add my logo on the products?
A: Yes, we can print your logo on the products.
Q3: Can I have a visit to your factory before the order?
A: Sure, welcome to our factory. Please just contact us when you come.
Q4: What's the location of you factory?
A: Building B, Wanda Industrial Zone,Langxin, Shiyan, Bao'an, Shenzhen, China.
