Customize Inground Color Changing Rgb Led Wall Washer Lights Energy Saving

Customize Inground Color Changing Rgb Led Wall Washer Lights Energy Saving

  • Customize Inground Color Changing Rgb Led Wall Washer Lights Energy Saving
  • Customize Inground Color Changing Rgb Led Wall Washer Lights Energy Saving
Customize Inground Color Changing Rgb Led Wall Washer Lights Energy Saving
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Maysee
Certification: CE/ROHS
Model Number: MS-WW-RGB-E
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton box or wooden case
Delivery Time: 10-15 working days upon receipt of the deposit
Payment Terms: T/T or WU or Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Material: Anodized Aluminum Light Color: RGB/R/G/B/W
LED Type: Cree Control Mode: DMX/on-off
Input Voltage: 24VDC IP Rating: IP66
Rated Power: 24W Warranty: 3-year
Size: 1060mm(L)x85mm(W)x101mm(H) N.W.: 10
High Light:

led recessed wall washer

,

led wall wash lighting fixtures

Customize inground led wall washer lights with RGB color changing



Description

MS-WW-RGB-D inground led wall washer fixtures multi-color with color-changing will mostly run via DMX512 system. It comes with separated led strip and power drive design, in the purpose of having the light work with DC24V directly.

With LEDLink lens, Cree led, Meanwell power supply and tempered glass to go for high performance and reliability.Maysee provides 3-year warranty and the best competitive technical solution accord with any special requirement from customers.



24w are the most popular model preferred by customers both the indoor and outdoor decorative wall washers, widely used for shopping mall, bridge, park and garden, etc.



Features

1.CREE RGB LED chip

2. 24w high power led wall washer
4. Anodized aluminum housing & bracket embedded parts
5. Up to 50,000hrs long life-span

6. Easy for cable connection and installation layout

7. Both RGB & mono-color are available
8. IP66





Specification

Model No.: MS-WW-RGB-E(24W)
Electric
Parameter
Power 24W
LED Drive Current 350mA
Input Voltage DC24V
Power Efficiency >90%
Environment
Parameter
Humidity 0~85%RH
Storage Temp.  -40℃~+80℃
Operating Temp.  -25℃~ +50℃(-13°F ~ +122°F)
Physical Parameter Dimension 1060mmx85mm(W)x101mm(H)
Weight 10kg
Material aluminum & tempered glass
Housing Color Gray
IP Grade IP66
Optical
Parameter
LED Brand CREE
LED Unit Power 1W
LED Quantity 24pcs
Light Source 8R8G8B/24R/24G/24B/24W/24Y
Lens Angle 10°/15°/25°/ 45°/ 15°x50°
White Color Temperature Warm White(2700~3500K);
Pure White(3500~5500K);
Cool White(>5500K)
LED Wave Length Red: 620 - 630nm;
Green:520 - 525nm;
Blue:465 - 470nm;
Amber:590 - 595nm
Life Time 50,000hrs
Controller

DMX512 / On-Off



Application

1. Architectural lighting

2. Downlighting or uplighting for wall wash
3. Landscape lighting
4. Road and bridge lighting
5. Museum and gallery lighting



Dimension



Customize Inground Color Changing Rgb Led Wall Washer Lights Energy Saving 0

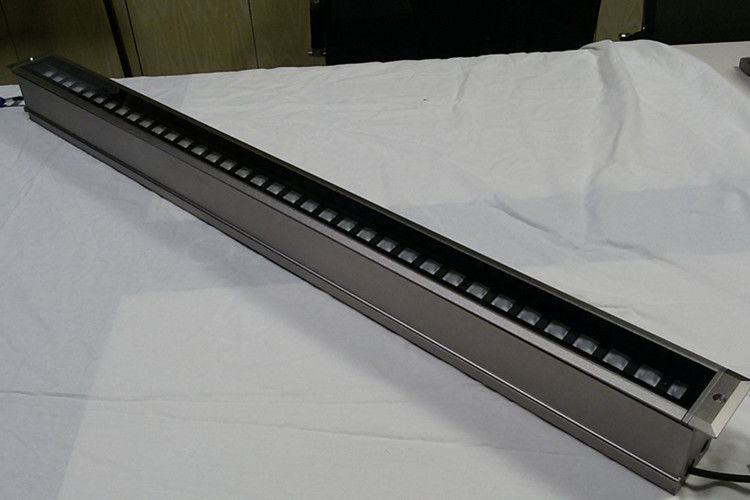

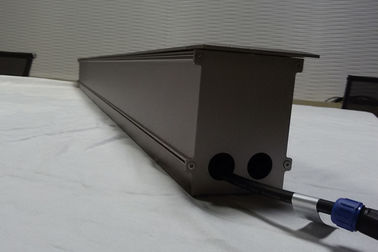

Pictures



Customize Inground Color Changing Rgb Led Wall Washer Lights Energy Saving 1



Customize Inground Color Changing Rgb Led Wall Washer Lights Energy Saving 2

Customize Inground Color Changing Rgb Led Wall Washer Lights Energy Saving 3
