Decoration exterior led wall wash lights , high power led wall washer control by DMX

Decoration exterior led wall wash lights , high power led wall washer control by DMX

  • Decoration exterior led wall wash lights , high power led wall washer control by DMX
  • Decoration exterior led wall wash lights , high power led wall washer control by DMX
Decoration exterior led wall wash lights , high power led wall washer control by DMX
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Maysee
Certification: CE/ROHS
Model Number: MS-WW-RGB-E
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton box or wooden case
Delivery Time: 10-15 working days upon receipt of the deposit
Payment Terms: T/T or WU or Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Material: Anodized Aluminum Light Color: RGB/R/G/B/W
LED Type: Cree Control Mode: DMX/on-off
Input Voltage: 24VDC IP Rating: IP66
Rated Power: 24W Warranty: 3-year
Size: 1060mm(L)x85mm(W)x101mm(H) N.W.: 10
High Light:

led recessed wall washer

,

led wall wash lighting fixtures

Outdoor decoration lighting led inground wall washer light control by DMX



Features
1. Exquisite extruded anodized aluminum housing
2. Various kinds of beam-angle for option
3. Up to 50,000hrs long life-span
4. Multi-positional & constant torque mounting
5. Light Source: RGB multi-color & mono-color
6. Control Mode: DMX/on-off/wifi
7. IP66





Competitive Advantages
1. Private mould for the extruded aluminum housing to keep the high precision & right assembly.
2. Adopt the imported construction silicon glue with high UV-resistance & non-corrosion.
3. Adopt much thicker aluminum housing as a better heat-sink solution.





Application
1. Architectural lighting for canopies, corridors, archways, windows
2. Downlighting or uplighting for wall wash
3. Landscape lighting
4. Road and bridge lighting
5. Museum and art gallery lighting
6. Sculpture and statue illumination
7. Excellent for hospitality applications (bars, restaurants, clubs, hotels)





Specification

Model No.: MS-WW-RGB-E(24W)
Electric
Parameter
Power 24W
LED Drive Current 350mA
Input Voltage DC24V
Power Efficiency >90%
Environment
Parameter
Humidity 0~85%RH
Storage Temp.  -40℃~+80℃
Operating Temp.  -25℃~ +50℃(-13°F ~ +122°F)
Physical Parameter Dimension 1060mmx85mm(W)x101mm(H)
Weight 10kg
Material aluminum & tempered glass
Housing Color Gray
IP Grade IP66
Optical
Parameter
LED Brand CREE
LED Unit Power 1W
LED Quantity 24pcs
Light Source 8R8G8B/24R/24G/24B/24W/24Y
Lens Angle 10°/15°/25°/ 45°/ 15°x50°
White Color Temperature Warm White(2700~3500K);
Pure White(3500~5500K);
Cool White(>5500K)
LED Wave Length Red: 620 - 630nm;
Green:520 - 525nm;
Blue:465 - 470nm;
Amber:590 - 595nm
Life Time 50,000hrs
Controller

DMX512 / On-Off

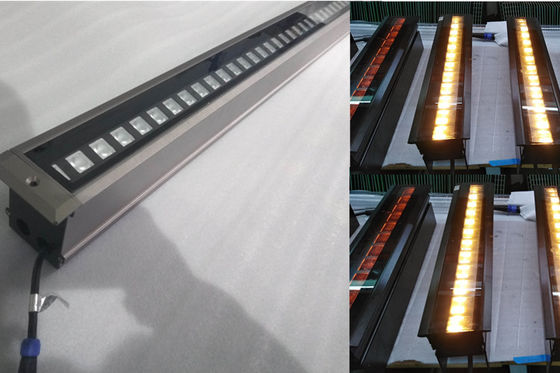

Pictures



Decoration exterior led wall wash lights , high power led wall washer control by DMX 0



Decoration exterior led wall wash lights , high power led wall washer control by DMX 1

Dimension



Decoration exterior led wall wash lights , high power led wall washer control by DMX 2



Decoration exterior led wall wash lights , high power led wall washer control by DMX 3
