Maysee Technology Ltd.
LED Wall Washer Light & LED Underwater Light Manufacturer
 |
| Place of Origin: | Shenzhen, China |
| Brand Name: | Maysee |
| Certification: | CE/ROHS |
| Model Number: | MS-WW-RGB-L5 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable for better price |
| Packaging Details: | standard carton box for export |
| Delivery Time: | 10-15 days upon receipt of the deposit |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 20000 pcs |
| Model No.: | MS-WW-RGB-L5 | Material: | Stainless Steel 316 |
|---|---|---|---|
| LED Type: | Nichia/Cree/Epistar | Lens-angle: | 120° |
| Input Voltage: | 24VDC | Rated Power: | 12W |
| Dimension: | 1000mm(L)x20mm(W)x40mm(H) | Light Source: | RGB/R/G/B/W |
| Control Mode: | DMX/on-off | ||
| High Light: | color changing led wall washer,led wall washer ip65 |
||
Non-standard customized stainless steel 316 LED linear wall washer with varies angle adjust
Competitive Advantages
1. Never rusting based on be used stainless steel 316 housing and mounting profile.
2.Customized the product according to the client requirements.
2. Exceptional design freedom
3. Easy to experience
Specification
| Model No. | MS-WW-RGB-L5 |
| Rated Power | 12W |
| Dimension | 1000mm(L)x20mm(W)x40mm(H) |
| Net Weight | 2kg |
| Q'ty of LEDs | 48pcs |
| Pixels per Bar | 8 pixels |
| DMX Channel per Bar | 8x3-CH |
| Cable outlet | one in,one out |
| CRI | Ra>80 |
| Input Voltage | 24VDC |
| LED Brand | Nichia/CREE/EPISTAR |
| Lens | 120° |
| Light Color | SMD (3-in-1) or mono-color |
| Material | Stainless steel 316 |
| Typical Light Efficiency | >100lm/W(6500K),>55lm/W(RGB) |
| Operating Humidity | 0-99%RH |
| Operation Temperature | -25℃-45℃ |
| Life Time | 50,000 hrs |
| IP Rating | IP66 |
| Control Mode | DMX512 for RGB version/on-off switch for mono version |
| Mounting | surface-mounting |
| Body color | Orignal stainless steel |
Features:
1.Cree led chip or Nichia led chip
2. 256 gradations for RGB individually
3. Display to 16,777,216 colors
4. Frame per second: >100 FPS at DMX512 control
5. Dimmable range: 0~255 steps at DMX512 dimming control
6. Built-in constanct-current circuit with PWM signal>400Hz
7. IP66
Application
Building outline, bridge, hotel, shopping mall, commercial area, park, etc.

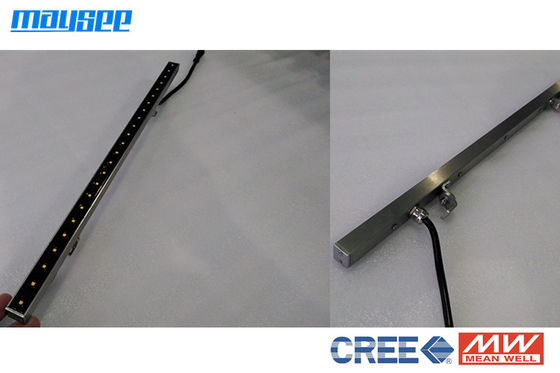

Product pics
Contact Person: Mr. Jimmy Yu
Tel: +86 138 2998 7215
Fax: 86-755-23140093
