Maysee Technology Ltd.
LED Wall Washer Light & LED Underwater Light Manufacturer
 |
| Place of Origin: | Shenzhen, China |
| Brand Name: | Maysee |
| Certification: | CE/ROHS |
| Model Number: | MS-WW-RGB-L4 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable for better price |
| Packaging Details: | standard carton box for export |
| Delivery Time: | 10-15 days upon receipt of the deposit |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 20000 pcs |
| Model No.: | MS-WW-RGB-L4 | Material: | Aluminum |
|---|---|---|---|
| LED Type: | Nichia/Cree/Epistar | Lens-angle: | 15°/25°/30°/45°/60°/80°/100°120° |
| Input Voltage: | 24VDC | Rated Power: | 12W |
| Dimension: | 1000mm(L)x36mm(W)x61mm(H) | Light Source: | RGB/R/G/B/W |
| Control Mode: | DMX/on-off | ||
| High Light: | color changing led wall washer,led wall washer ip65 |
||

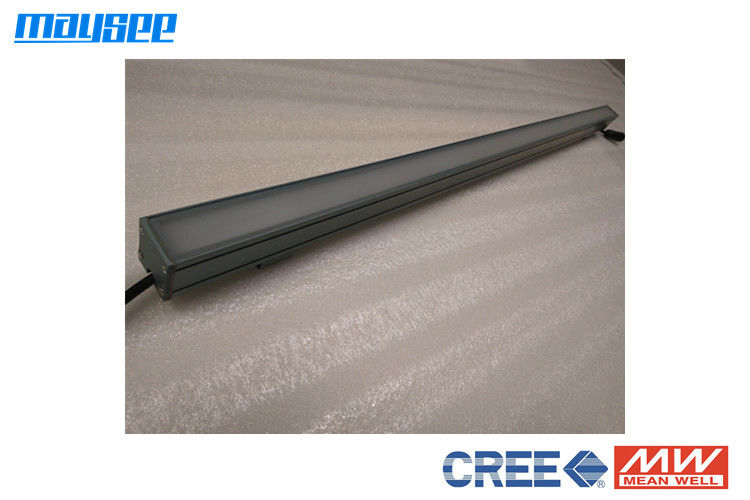

Outdoor LED linear light 12watts 1000mm length RGB linear fixture
Description
MS-WW-RGB-L4 comes with separated led strip and power drive design, in the purpose of having the light work with 24VDC directly.
With LEDLink lens, Cree led, Meanwell power supply and tempered glass to go for high performance and reliability.
Maysee provides 3-year warranty and the best competitive technical solution accord with any special requirement from customers.
Mono-color with simple "on/off" switch control and RGB multi-color will be mostly run via DMX512 system.
12W is the most popular model preferred by customer as both the indoor and outdoor decorative wall washers, widely used for shopping mall, bridge, park and garden, etc.
Advantages
1. Private tool with nice appearance design and feasible mechanical assembly
2. With thick enough anodized aluminum housing to go for better heat-dissipation
3. High-power led suitable for outdoor night visual effect
Specification
| Model No. | MS-WW-RGB-L4 |
| Rated Power | 12W |
| Dimension | 1000mm(L)x36mm(W)x61mm(H) |
| Net Weight | 1.5kg |
| Q'ty of LEDs | 48pcs |
| Pixels per Bar | 8 pixels |
| DMX Channel per Bar | 8x3-CH |
| Cable outlet | one in,one out |
| CRI | Ra>80 |
| Input Voltage | 24VDC |
| LED Brand | Nichia/CREE/EPISTAR |
| Lens | 15°/25°/30°/45°/60°/80°/100°120° |
| Light Color | SMD (3-in-1) or mono-color |
| Material | L6063Aviation Aluminum/Frosted tempered glass |
| Typical Light Efficiency | >100lm/W(6500K),>55lm/W(RGB) |
| Operating Humidity | 0-99%RH |
| Operation Temperature | -25℃-45℃ |
| Life Time | 50,000 hrs |
| IP Rating | IP66 |
| Control Mode | DMX512 for RGB version/on-off switch for mono version |
| Mounting | surface-mounting |
| Body color | Grey |
Features
1. 256 gradations for RGB individually
2. Display to 16,777,216 colors
3. Frame per second: >100 FPS at DMX512 control
4. Dimmable range: 0~255 steps at DMX512 dimming control
5. Built-in constanct-current circuit with PWM signal>400Hz
6. Surface-mounted type
7. Comply with DMX512(1990)
8. Anode oxidized 6063 aluminium alloy housing and Frosted tempered glass cover
9. IP66
Product pics
