Maysee Technology Ltd.
LED Wall Washer Light & LED Underwater Light Manufacturer
 |
| Place of Origin: | Shenzhen, China |
| Brand Name: | Maysee |
| Certification: | CE/ROHS |
| Model Number: | MS-WW-RGB-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box or wooden case |
| Delivery Time: | 10-15 working days upon receipt of the deposit |
| Payment Terms: | T/T or WU or Paypal |
| Supply Ability: | 10000pcs per month |
| Material: | Anodized Aluminum | Light Color: | RGB/R/G/B/W |
|---|---|---|---|
| LED Type: | Cree | Control Mode: | DMX/on-off |
| Input Voltage: | AC110-220V/24VDC | IP Rating: | IP65 |
| Rated Power: | 36W | Warranty: | 3-year |
| Size: | 1000mm(L)x54mm(W)x95mm(H) | N.W.: | 3.2kg |
| High Light: | led recessed wall washer,led wall wash lighting fixtures,36 watt ip65 rgb led wall washer |
||

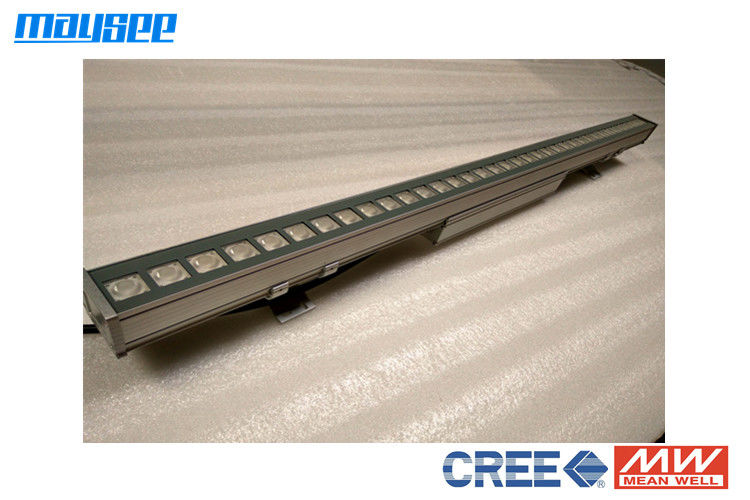

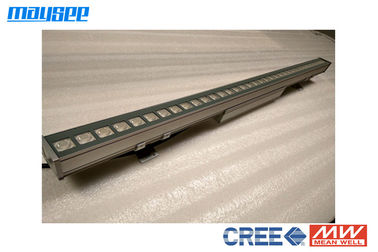

36Watts LED wall washers light with RGB color changing
Advantages
1. Design: Compact, elegant and humanized design, make the light itself a work of art combination with the environment. Sufficient heat dissipation, safe and good protection.
2. Housing: 6030 aluminum alloy with extrusion technology and oxidation treatment, durable and anti-corrosion.
3. Glass: High transparency tempered glass, low light loss, high brightness.
4. LED: imported LED, high stability, long life-span.
5. Effect: There are R,G,B,W,Y LED for option, reach the mixed light effect with short distance.
6. Lens: Multi-angle and spread-light lens design, not only meet all kinds of lighting design requirements, but also maximizing the light utilization rate.
7. Control: DMX512 control/ On-Off control.
8. Wiring & Installation: Simple & neat wiring, make the installation and maintenance more fast and easy.
9. Level: IP65. Silicon rubber sealing technology securing perfect waterproof performance.
Features
1. Lamp shells of high-quality aluminum, anodized surface. Elegant and delicate light body,excellent heat dissipation.
3.High intensity,corrosion resistance aviation aluminium,light source close to shell,unique outline,good cooling.
4. 110V/220V high-power input
5.Adopt sponge structure patent waterproof technology,break through traditional sealant
6.Connect to DMX controller to realize jump change,frequent change,chase,smooth,scanning change.
7.Or use USB to connect to computer to realize sychronism change.
8.No need to set IP ,write IP at the same time when connected to led lighting.
9.It changes with DMX controller when DMX signal is available,it changes with the first light when DMX signal is not available.
Specification
| Model No.: MS-WW-RGB-A(36W) | ||
| Electric Parameter |
Power | 36W |
| LED Drive Current | 350mA | |
| Input Voltage | AC110-220/DC24V | |
| Power Efficiency | >90% | |
| Environment Parameter |
Humidity | 0～85%RH |
| Storage Temp. | -40℃～+80℃ | |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) | |
| Physical Parameter | Dimension | 1000mmx54mm(W)x95mm(H) |
| Weight | 3.2kg | |
| Material | aluminum & tempered glass | |
| Housing Color | silver | |
| IP Grade | IP65 | |
| Optical Parameter |
LED Brand | CREE |
| LED Unit Power | 1W | |
| LED Quantity | 36pcs | |
| Light Source | 12R12G12B/36R/36G/36B/36W/36Y | |
| Lens Angle | 10°/15°/25°/ 45°/ 15°x50° | |
| White Color Temperature | Warm White(2700～3500K); Pure White(3500～5500K); Cool White(>5500K) |
|
| LED Wave Length | Red: 620 - 630nm; Green:520 - 525nm; Blue:465 - 470nm; Amber:590 - 595nm |
|
| Life Time | 50,000hrs | |
| Controller | DMX512 / On-Off | |
Application
Maysee's LED wall washer light is widely used for the landscape and decorative lighting. They are always working for the waterfall, bulding outline, bridge, river,museum, etc. They come with mono-color and RGB multi-color for option. With simple switch or DMX control.
Dimension
Pictures
Contact Person: Mr. Jimmy Yu
Tel: +86 138 2998 7215
Fax: 86-755-23140093
