| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | Maysee |
| Certification: | CE/ROHS |
| Model Number: | MS-UW-RGB-A18 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box or wooden case |
| Delivery Time: | 10working days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 5000pcs per month |
| Material: | 316 Stainless Steel&Tempered Glass | Light Color: | 6R6G6B/18R/18G18B/18W |
|---|---|---|---|
| LED Type: | CREE | Control Mode: | DMX/wifi/on/off |
| Drive Mode: | Costant Current | IP Rating: | IP68 |
| Rated Power: | 18x1w/18x3w | Installation: | Embedded PVC Sleeve/306 Tripod |
| High Light: | submersible led pond lights,led underwater pond lights |
||

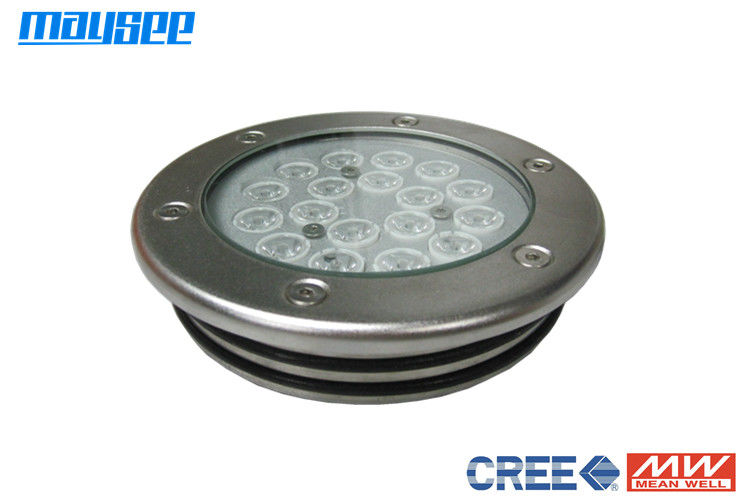

Aquascape Led Pond Lights Swimming Pool Led Lights Controlled By DMX
Specification
| Model No.: MS-UW-RGB-A18 | |||||
| Electric Parameter |
Max.Power | 18W | 54W | ||
| LED Drive Current | 350mA | 700mA | |||
| Environment Parameter |
Environment Humidity | 0～85%RH | |||
| Storage Temp. | -40°～+80° | ||||
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) | ||||
| Physical Parameter | Dimension | ￠124mmxH34mm | |||
| Weight | 1.35Kg | ||||
| Material | stainless steel & tempered glass | ||||
| Housing Color | silver white | ||||
| IP Grade | IP68 | ||||
| Optical Parameter |
LED Brand | CREE XPE | |||
| LED Unit Power | 1W | 3W | |||
| LED Quantity | 18pcs LEDs | ||||
| Light Source | 6R6G6B/18W | ||||
| Lens Angle | 25°/ 40°/ 60°/ 80°/100° | ||||
| Color Temperature | Warm White(2700～4000K); Pure White(4000～5000K); Cool White(>5000K) |
||||
| LED Wave Length | Red: 620 - 630nm; Green:520 - 525nm; Blue:465 - 470nm; Amber:590 - 595nm |
||||
| Life Time | 50,000 hrs | ||||
| Controller Interface |
constant current drive |
||||
Features
1. CE, RoHS & IP68 approved.
2. Stainless steel 316+Glass lamp shade.
3. Input Voltage Option: DC12V~DC24V
4. LED Type: Cree High Power Led 1w/3w per unit
5. Optional Color: R/Y/G/B/W/WW/RGB can be choosen
Advantages
1. 316 Stainless housing made by Maysee's private tool
2. Processed via CNC to keep high precision
3. Constant current electronic design helpful for saving the maintenance cost
4. Suitable for diffeent installation type: PVC embedded parts, 304 stainless steel tripod or surface-
mounting.
Application
1) Waterfall & fountain 2) Swimming pool & pond 3) Aquarium 4)Summer beach & fishing dock
There are 2 types of monting: Recessed and Tripod .
Recessed mounting is usually be fixed by embedded plastic parts, the light surface same level with the pool wall, mostly be used for swimming pools, fountains or other underwater beautify ocassions.
Tripod (stainless steel) mounting is suitable for ocassions where requires to adjust the projection-angle, for example waterfall, pond, fountain etc.
Recessed:
Tripod:
