Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting

Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting

  • Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting
  • Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting
Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Maysee
Certification: CE/ROHS
Model Number: MS-WW-RGB-B
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton box or wooden case
Delivery Time: 10-15 working days upon receipt of the deposit
Payment Terms: T/T or WU or Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Material: Anodized Aluminum Light Color: RGB/R/G/B/W
LED Type: Cree Control Mode: DMX/on-off
Input Voltage: 24VDC IP Rating: IP65
Rated Power: 36W Warranty: 3-year
Size: 1000mm(L)x53mm(W)x87mm(H) N.W.: 1.9kg
High Light:

led recessed wall washer

,

outside led wall washer

Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting



Features



      1.Product name:led wall washer

      2.Input voltage,AC85-265V,DC12V,24V led driver is also available

      3.Protection grade is IP 65

      4.PMAM lens,15°30°45°60° for your choice

      5.Ligt body is made of aluminum and tempered glass

      6.Optioanl power can be 9w/12w/15w/18w/24w/36w/48w



Advantages


1. Private tool with nice appearance design and high-precision assembly
2. Light-weight for lower labor-cost and transportation cost
3. High brightness upon virious beam-angle

4. 3-year warranty



Specification

Model No.: MS-WW-RGB-B(36W)
Electric
Parameter
Max.Power 36W
LED Drive Current 350mA
Input Voltage DC24V
Power Efficiency >90%
Environment
Parameter
Humidity 0~85%RH
Storage Temp.  -40℃~+80℃
Operating Temp.  -25℃~ +50℃(-13°F ~ +122°F)
Physical Parameter Dimension 1000mmx53mm(W)x87mm(H)
Weight 1.9kg
Material aluminum & tempered glass
Housing Color silver
IP Grade IP65
Optical
Parameter
LED Brand CREE
LED Unit Power 1W
LED Quantity 36pcs
Light Source 12R12G12B/36R/36G/36B/36W/36Y
Lens Angle 10°/15°/25°/ 45°/ 15°x50°
White Color Temperature Warm White(2700~3500K);
Pure White(3500~5500K);
Cool White(>5500K)
LED Wave Length Red: 620 - 630nm;
Green:520 - 525nm;
Blue:465 - 470nm;
Amber:590 - 595nm
Life Time 50,000hrs
Controller

DMX512 / On-Off









Application

1. Architectural lighting

2. Downlighting or uplighting for wall wash
3. Landscape lighting
4. Road and bridge lighting
5. Museum and gallery lighting

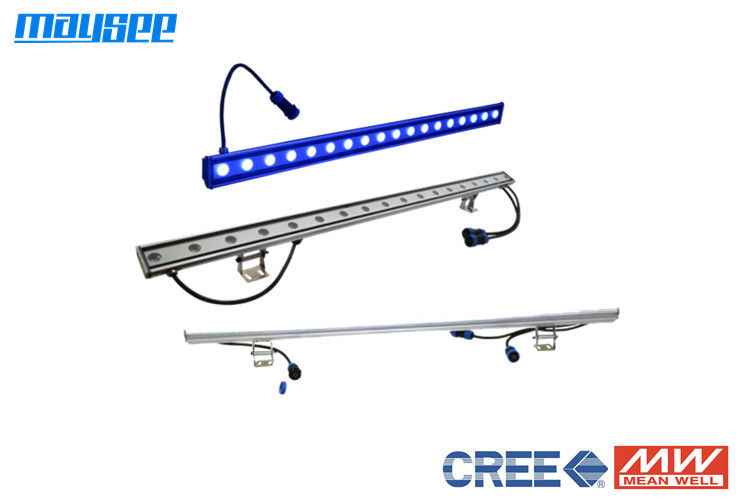

Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting 0



Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting 1



Controller DMX512 Outdoor RGB LED Wall Washer For Architectural Lighting 2
