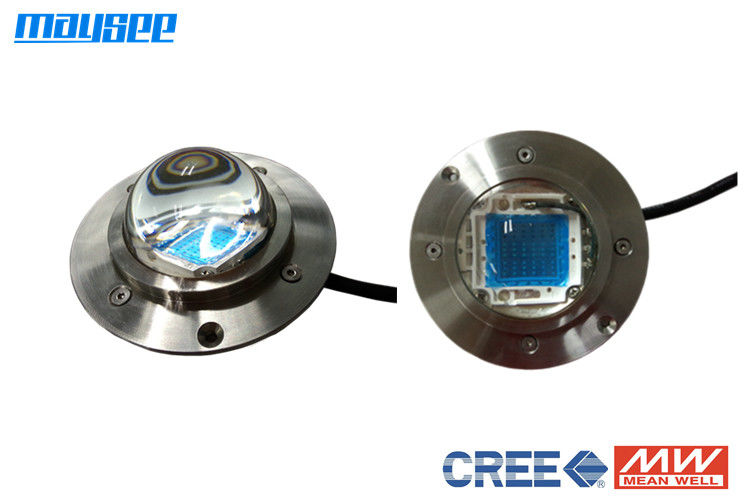

External 54W COB Epistar LED Dock Lights with 120° Wide Beam - Angle

External 54W COB Epistar LED Dock Lights with 120° Wide Beam - Angle

  • External 54W COB Epistar LED Dock Lights with 120° Wide Beam - Angle
External 54W COB Epistar LED Dock Lights with 120° Wide Beam - Angle
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Maysee
Certification: CE/ROHS
Model Number: MS-UW-RGB-C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: carton box or wooden case
Delivery Time: 10-15 working days upon receipt of the deposit
Payment Terms: T/T or WU or Paypal
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: 316 Stainless Steel & Tempered Glass Light Color: 18R18G18B/R/G/B/W
LED Type: COB (54-in-1)Epistar Control Mode: DMX/WIFI/on-off
Drive Mode: Constant Current IP Rating: IP68
Rated Power: 54W Installation: Embedded PVC Sleeve / 304 Tripod/surface-mounting
High Light:

led boat dock lights

,

led marine dock lights

54W COB Epistar LED Dock Lights with 120° wider beam-angle



Specification

Model No.: MS-UW-RGB-C
Max.Power 54W
LED Drive Current 230mA
Environment Humidity 0~85%RH
Storage Temp. -40°~+80°
Operating Temp.  -25℃~ +50℃(-13°F ~ +122°F)
Dimension ¢126mmxH56mm
Weight 1.5 kg
Material 316 stainless steel & tempered glass
Housing Color silver white
IP Grade IP68
LED Brand China Brand
LED Unit Power 1W
LED Quantity 1pc LED
Light Source 18R18B18G/54R/54G/54B/54W
Lens Angle 120°
Color Temperature Warm White(2700~4000K);
Pure White(4000~5000K);
Cool White(>5000K)
LED Wave Length Red: 620 - 630nm;
Green:520 - 525nm;
Blue:465 - 470nm;
Amber:590 - 595nm
Life Time 50,000 hrs
Control Mode DMX/WiFi/on-off
Niche embedded PVC sleeve/SS304 stripod/surface-mounting via screws



Advantages

1. 316 Stainless housing made by Maysee's private tool

2. Processed via CNC to keep high precision

3. Constant current electronic design helpful for saving the maintenance cost

4. Suitable for diffeent installation type: PVC embedded parts, 304 stainless steel tripod or surface-

    mounting.



Features

1. 120° wider beam-angle

2. With dimpled diffuser lens and fully transparent lens for option

3. Stainless steel 316+Glass lamp shade.

4. Input Voltage Option: DC12V~DC24V

5. RGB/R/G/B/W for option

6. Besides the embedded installation method, the easy surface-mounting via screws is available, too.

7. IP68



Application

1) Waterfall & fountain

2) Swimming pool & pond

3) Fishing dock

4) Beach



With 314 stainless steel tripod surface-mounting

External 54W COB Epistar LED Dock Lights with 120° Wide Beam - Angle 0



Waterproof-test

External 54W COB Epistar LED Dock Lights with 120° Wide Beam - Angle 1
