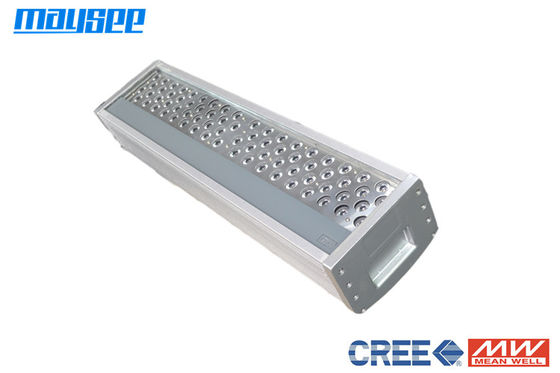

72w RGB waterproof LED Flood Light with AC110-240VAC Cree led chip for store / bridge

72w RGB waterproof LED Flood Light with AC110-240VAC Cree led chip for store / bridge

  • 72w RGB waterproof LED Flood Light with AC110-240VAC Cree led chip for store / bridge
72w RGB waterproof LED Flood Light with AC110-240VAC Cree led chip for store / bridge
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Maysee
Certification: CE/ROHS
Model Number: MS-FLD-RGB-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton box or wooden case
Delivery Time: 10-15 working days upon receipt of the deposit
Payment Terms: T/T or WU or Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Material: Anodized Aluminum Light Color: RGB/R/G/B/W
LED Type: Cree Control Mode: DMX/on-off
Input Voltage: 110VAC/220VAC IP Rating: IP65
Rated Power: 72w
High Light:

rgb led flood lights outdoor

,

dmx rgb led flood lights

72w RGB waterproof LED Flood Light with AC110-240VAC Cree led chip for store / bridge



Features

1) Adopt high LED as light source. Energy-saving up to 80%, environment protection and long life time.

2) Using constant current to drive.

3) Low working voltage. Secure and reliable.

4) 5mm toughened transparent glass, high temperature resisting, easy for lights penetration, transmittance as high as 92%.

5) Color effects: shifting in seven colors. Color chasing, color fading, jump changing, gradual changing, running. 256 degree gray  scale function.



Specification

Electric
Paramenter
Max.Power 72W
LED Drive Current 350mA
Input Voltage AC110V/AC220V
Power Efficiency >70%
Environment
Parameter
Environment Humidity 0~85%RH
Storage Temp. -40°~+80°
Operating Temp.   -25℃~ +50℃(-13°F ~ +122°F)
Structure Dimension L636mm(2ft)xW150mmxH172mm
Weight 7.2Kg
Material aluminum & tempered glass
Housing Color silver
IP Grade IP65
Optical
Parameter
LED Brand CREE XPE
LED Unit Power 1W
LED Quantity 72pcs
Light Source 24R24G24B/72W
Lens Angle 10°/15°/25°/ 45°/ 15°x50°
White Color Temperature Warm White(2700~4000K);
Pure White(4000~5000K);
Cool White(>5000K)
LED Wave Length Red: 620 - 630nm;
Green:520 - 525nm;
Blue:465 - 470nm;
Amber:590 - 595nm
Life Time 50,000hrs
Controller DMX512 / On-Off

Competitive Advantages

1) Input: 110V/220VAC   2) Good heat dissipation   3) High Lumens(100-110lm/w)

4) long-life span              5) Energy saving               6)  Design special



Application

1.Tunnel,Subway,Underground

2. Gymnasium,Sports Stadium Lighting

3. Building, Billboard Lighting

4. Garage Lighting,Gas Station led linear light

5. Factory Lighting,Workshop

6. Signboard, building,square decoration and lighting

7. Highway Lighting,Station,Dock Lighting



72w RGB waterproof LED Flood Light with AC110-240VAC Cree led chip for store / bridge 0



DMX Control for RGB LED Flood Light and the address-writer is able to help perform address settings

72w RGB waterproof LED Flood Light with AC110-240VAC Cree led chip for store / bridge 1



72w RGB waterproof LED Flood Light with AC110-240VAC Cree led chip for store / bridge 2



72w RGB waterproof LED Flood Light with AC110-240VAC Cree led chip for store / bridge 3
