Maysee Technology Ltd.
LED Wall Washer Light & LED Underwater Light Manufacturer
 |
| Place of Origin: | Shenzhen, China |
| Brand Name: | Maysee |
| Certification: | CE/ROHS |
| Model Number: | MS-WW-RGB-B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box or wooden case |
| Delivery Time: | 10-15 working days upon receipt of the deposit |
| Payment Terms: | T/T or WU or Paypal |
| Supply Ability: | 10000pcs per month |
| Material: | Anodized Aluminum | Light Color: | RGB/R/G/B/W |
|---|---|---|---|
| LED Type: | Cree | Control Mode: | DMX/on-off |
| Input Voltage: | 24VDC | IP Rating: | IP65 |
| Rated Power: | 36W | Warranty: | 3-year |
| Size: | 1000mm(L)x53mm(W)x87mm(H) | N.W.: | 1.9kg |
| High Light: | led recessed wall washer,outside led wall washer,rgb dmx control wall washer light |
||

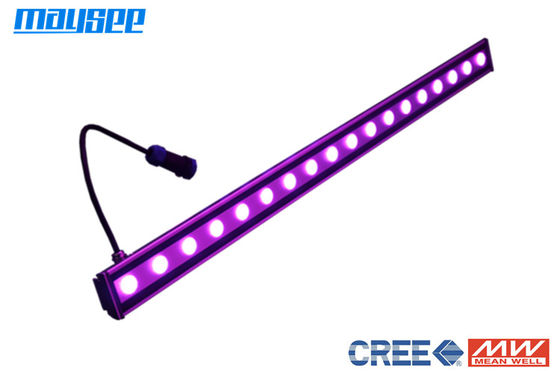

Anodized aluminum RGB LED Wall Washer in size 1000mm with weipu connector and Cree leds
Advantages
1. Private tool with nice appearance design and high-precision assembly
2. Light-weight for lower labor-cost and transportation cost
3. High brightness upon virious beam-angle
4. 3-year warranty
Specification
| Model No.: MS-WW-RGB-B(36W) | ||
| Electric Parameter |
Max.Power | 36W |
| LED Drive Current | 350mA | |
| Input Voltage | DC24V | |
| Power Efficiency | >90% | |
| Environment Parameter |
Humidity | 0～85%RH |
| Storage Temp. | -40℃～+80℃ | |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) | |
| Physical Parameter | Dimension | 1000mmx53mm(W)x87mm(H) |
| Weight | 1.9kg | |
| Material | aluminum & tempered glass | |
| Housing Color | silver | |
| IP Grade | IP65 | |
| Optical Parameter |
LED Brand | CREE |
| LED Unit Power | 1W | |
| LED Quantity | 36pcs | |
| Light Source | 12R12G12B/36R/36G/36B/36W/36Y | |
| Lens Angle | 10°/15°/25°/ 45°/ 15°x50° | |
| White Color Temperature | Warm White(2700～3500K); Pure White(3500～5500K); Cool White(>5500K) |
|
| LED Wave Length | Red: 620 - 630nm; Green:520 - 525nm; Blue:465 - 470nm; Amber:590 - 595nm |
|
| Life Time | 50,000hrs | |
| Controller | DMX512 / On-Off | |
Features
1. 24VDC input with lower power
2. Slim & light-weight design just with 1.9kg per meter
3. RGB DMX control
4. IP65
Application
1. Architectural lighting
2. Downlighting or uplighting for wall wash
3. Landscape lighting
4. Road and bridge lighting
5. Museum and gallery lighting
Visual Effect
