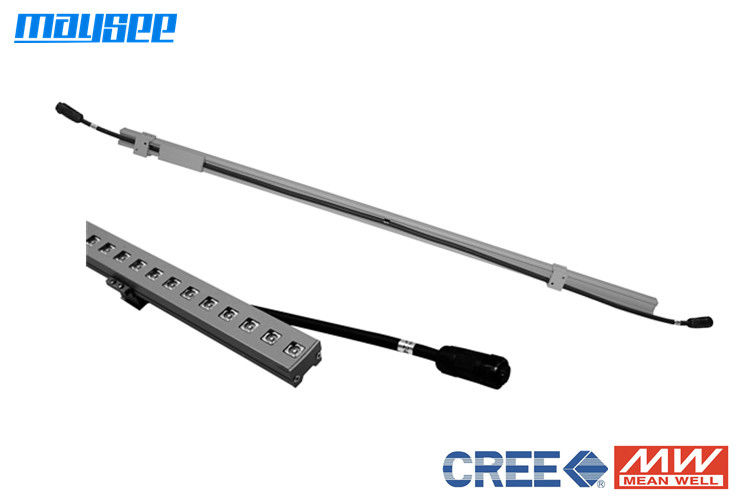

Exterior SMD 3-in-1 Nichia Linear LED Wall Washer Light For Architectural Lighting

Exterior SMD 3-in-1 Nichia Linear LED Wall Washer Light For Architectural Lighting

  • Exterior SMD 3-in-1 Nichia Linear LED Wall Washer Light For Architectural Lighting
  • Exterior SMD 3-in-1 Nichia Linear LED Wall Washer Light For Architectural Lighting
Exterior SMD 3-in-1 Nichia Linear LED Wall Washer Light For Architectural Lighting
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Maysee
Certification: CE/ROHS
Model Number: MS-WW-RGB-L1
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton box or wooden case
Delivery Time: 10-15 working days upon receipt of the deposit
Payment Terms: T/T or WU or Paypal
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: Aluminum Light Color: RGB/R/G/B/W
LED Type: Nichia Control Mode: DMX/on-off
Input Voltage: 24VDC IP Rating: IP67
Rated Power: 3w/5w/10w/18w Warranty: 3-year
High Light:

linear led wall washer light

,

led wall washer ip65

Exterior SMD 3-in-1 Nichia Linear LED Wall Washer Light For Architectural Lighting





Specification



Model No. MS-WW-RGB-L1 MS-WW-RGB-L1 MS-WW-RGB-L1 MS-WW-RGB-L1
Rated Power 18W(max.) 10W(max.) 5W(max.) 3W(max.)
Length 1500mm 1000mm 500mm 250mm
Net Weight 1.3kg 0.92kg 0.52kg 0.3kg
Q'ty of LEDs 72pcs 48pcs 24pcs 12pcs
Pixels per Bar 12 pixels 8 pixels 4 pixels 2 pixels
DMX Channel per Bar 12x3-CH 8x3-CH 4X3-CH 2X3-CH
Pixel Pitch 20.5mm
WidthxDepth 32mmx38mm
Input Voltage 24VDC
LED Brand Nichia
Lens Convex (102°)
Light Color SMD (3-in-1) or mono-color
Material anodized aluminum housing &  polycarbonate Lens
Bar Intensity 35Lm/W (RGB)
Operating Humidity 0-99%RH
Operation Temperature  -20℃-70℃
Life Time 50,000 hrs
IP Rating IP67
Control Mode DMX512 for RGB version/on-off switch for mono version
Mounting surface-mounting
Warranty 3-year



Features

1. Link multiple controllers together to create large scale synchronized lighting effects

2. Mounting gears and simple rotating mechanisms included to aid easy installation and removal

3. High brightness LEDs creates a bright wash of light,projecting up to 65 feet

4. Adjustable angle design and easy installation maximized on site flexibility

5. RGB color-changing modes operating through our DMX controller can handle sophisticated tasks

6. IP67



Service
A. All the inquiries related to linear led wall washer lights will be replied in 24hours;

B. All the private information related to customers' sales market and design concept;
C. Well-trained and experienced staffs to answer all your inquires in fluent English;
D. Distributorship will be offered for customers' unique design or some of our current models;
E. OEM & ODM will be available.



Application

1. Indoor/outdoor social events:parties,weddings

2. Corporate engagements & trade shows

3. Restaurant & dance clubs

4. Garden & outdoor accents

5. Exterior & architectural lighting

6. Indirect & accent lighting

7. Billboard & outdoor signage

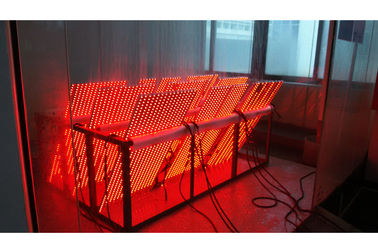

Exterior SMD 3-in-1 Nichia Linear LED Wall Washer Light For Architectural Lighting 0



Exterior SMD 3-in-1 Nichia Linear LED Wall Washer Light For Architectural Lighting 1



Exterior SMD 3-in-1 Nichia Linear LED Wall Washer Light For Architectural Lighting 2
