Maysee Technology Ltd.
LED Wall Washer Light & LED Underwater Light Manufacturer
 |
| Place of Origin: | Shenzhen, China |
| Brand Name: | Maysee |
| Certification: | CE/ROHS |
| Model Number: | MS-WW-RGB-C |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box or wooden case |
| Delivery Time: | 10-15 working days upon receipt of the deposit |
| Payment Terms: | T/T or WU or Paypal |
| Supply Ability: | 10000pcs per month |
| Material: | Anodized Aluminum | Light Color: | RGB/R/G/B/W |
|---|---|---|---|
| LED Type: | Cree | Control Mode: | DMX/on-off |
| Input Voltage: | 110VAC/220VAC | IP Rating: | IP65 |
| Rated Power: | 36x1W | Warranty: | 3-year |
| Power Supply: | Meanwell | Drive Mode: | Built-in Drive |
| High Light: | CE ROHS outdoor led wall washer,36W led wall wash lights,36W led linear wall washer |
||

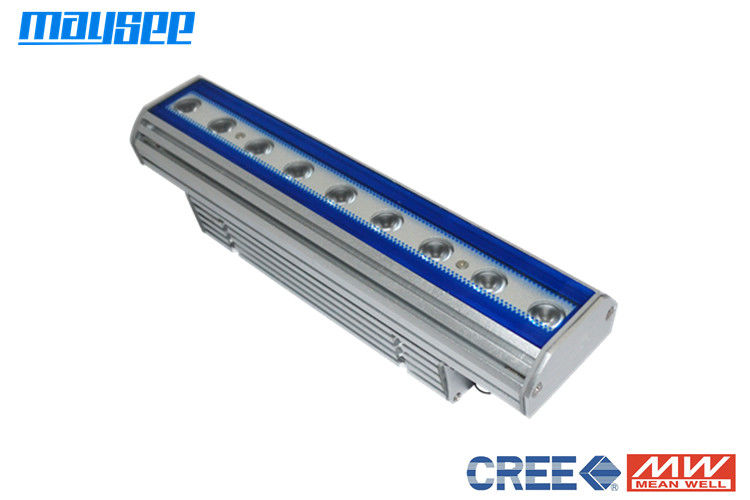

36W IP65 DMX Control RGB LED Wall Washer Lights For Museum / Garden
Features
1. Exquisite extruded anodized aluminum housing
2. Various kinds of beam-angle for option
3. Up to 50,000hrs long life-span
4. Multi-positional & constant torque mounting
5. Light Source: RGB multi-color & mono-color
6. Control Mode: DMX/on-off/wifi
7. IP65
Competitive Advantages
1. Private mould for the extruded aluminum housing to keep the high precision & right assembly.
2. Adopt the imported construction silicon glue with high UV-resistance & non-corrosion.
3. Adopt much thicker aluminum housing as a better heat-sink solution.
Application
1. Architectural lighting for canopies, corridors, archways, windows
2. Downlighting or uplighting for wall wash
3. Landscape lighting
4. Road and bridge lighting
5. Museum and art gallery lighting
6. Sculpture and statue illumination
7. Excellent for hospitality applications (bars, restaurants, clubs, hotels)
Technical Specification
| Electric Parameter |
Max.Power | 36W |
| LED Drive Current | 350mA | |
| Input Voltage | AC220V/AC110V | |
| Power Efficiency | >90% | |
| Environment Parameter |
Humidity | 0～85%RH |
| Storage Temp. | -40°～+80° | |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) | |
| Physical Parameter | Dimension | 1235mm(4ft)x75mm(W)x75mm(H) |
| Weight | 4.5kg | |
| Material | aluminum & tempered glass | |
| Housing Color | silver | |
| IP Grade | IP65 | |
| Optical Parameter |
LED Brand | CREE XPE |
| LED Unit Power | 1W | |
| LED Quantity | 36pcs | |
| Light Source | 12R12G12B/36R/36G/36B/36W/36Y | |
| Lens Angle | 25°/ 40°/ 60°/25°x45° | |
| White Color Temperature | Warm White(2700～4000K); Pure White(4000～5000K); Cool White(>5000K) |
|
| LED Wave Length | Red: 620 - 630nm; Green:520 - 525nm; Blue:465 - 470nm; Amber:590 - 595nm |
|
| Life Time | 50,000hrs | |
| Controller | DMX512 / On-Off |
Description
1. Design: Compact, elegant and humanized design, make the light itself a work of art combination with
the environment. Sufficient heat dissipation, safe and good protection.
2. Housing: anodized aluminum with extrusion technology and oxidation treatment, durable and anti-corrosion.
3. Glass: High transparency tempered glass, low light loss,high illuminance.
4. LED: imported LED, high stability, long life-span.
5. Effect: There are R,G,B,W,Y LED for option,reach the mixed light effect with short distance.
6. Lens: Multi-angle and spread-light lens design, not only meet all kinds of lighting design requirements, but also maximizing the light utilization rate.
7. Control: DMX512 control/ On-Off control.
8. Wiring&Installation: Simple&neat wiring, make the installation and maintenance more fast and easy.
9. Level: IP65. Silicon rubber sealing technology securing perfect waterproof performance.
