Linear LED Wall Washer Light 40W 316L Stainless Steel Material Housing

Linear LED Wall Washer Light 40W 316L Stainless Steel Material Housing

Linear LED Wall Washer Light 40W 316L Stainless Steel Material Housing
video
Linear LED Wall Washer Light 40W 316L Stainless Steel Material Housing
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Maysee
Certification: CE/ROHS
Model Number: MS-WW-RGB-C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton box or wooden case
Delivery Time: 15-20 working days upon receipt of the deposit
Payment Terms: T/T or WU or Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Material: 316L Stainless Steel Light Color: R,G,B,W
LED Type: CREE Control Mode: Power On/off Or DMX512, 0-10V Dimming
Input Voltage: 24VDC IP Rating: IP67
Rated Power: 12w/18w/24w/36W/40W Dimension: 1000mmX60mmX81mm
High Light:

Linear LED Wall Washer Light

,

LED Wall Washer Light 40W

,

SS316L led wall washer light

Linear LED Wall Waher Light 40w 316L stainless steel material Housing



This is specious design for LED linear light LED wall washer light can used to be near the seaside,or work under the heavy salt ambient.it use as waterwall,swimming pool light, seaside decoration light,The light housing is full 316L stianless steel material,it's never rust.



Advantage of LED linear light

1. Each Light pass by IP67 test.

2. All the lights pass by 48h function test and viabration test.

3. CE,Rohs,UKCA,LVD,EN62560 Certificate.

4. 316L Stainless steel material resistant to corrosion,the light can work near the sea water.

5. CREE LED chip,Meaneall power driver,the best quality part.




Specification

Model No.: MS-WW-RGB-C
LED Q'ty 24pcs
Light Source White/RGB/RGBW
Rated Power  40W
Dimension 1000mmX60mmX81mm
Material  316L stainless steel
N.W. 5kg
Input Voltage 24VDC
Control Mode on/off or DMX512
LED Type CREE
Unit LED Power 3W
Lens-angle 10°/15°/25°/ 45°/60° 20°x50°, Option Opal/Frosted diffuse
Life Time 50,000hrs
IP Rating

IP67







Application



This waterproof IP67 LED linear light widely used in garden pool, square pool, hotel pool, fountain and other underwater lighting.



2D Drawings



Linear LED Wall Washer Light 40W 316L Stainless Steel Material Housing 0

Control Mode



DMX Control



RGB light is the DMX512 signal input directly,each light address by DMX controller.

The cable is 4wires, DMX+,DMX-,DC24V+.DC24V-,



Linear LED Wall Washer Light 40W 316L Stainless Steel Material Housing 1



Power On/off control



It's a very simple connection between the DC24V switch power supply and LED linear light. It is mainly used for showing the mono-color based on the static & constant working status.





Linear LED Wall Washer Light 40W 316L Stainless Steel Material Housing 2

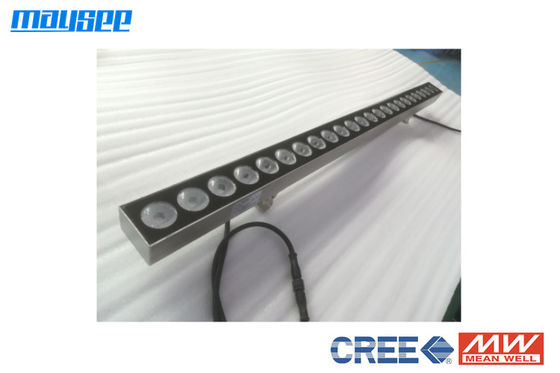

Product photo



Linear LED Wall Washer Light 40W 316L Stainless Steel Material Housing 3
