Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light

Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light

  • Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light
Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Maysee
Certification: CE/ROHS/IP68
Model Number: MS-WW-RGB-D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton box or wooden case
Delivery Time: 10-15 working days upon receipt of the deposit
Payment Terms: T/T or WU or Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Material: Anodized Aluminum+316Lstainless Steel Light Color: R,G,B,W
LED Type: CREE Control Mode: Power On/off Or DMX512, 0-10V Dimming
Input Voltage: 24VDC IP Rating: IP68
Rated Power: 12w/18w/24w Dimension: Dia.44x1026mm
High Light:

Waterproof Marine LED Linear Light

,

5meter Marine LED Linear Light

,

RGB Marine LED Linear Light 12w

Marine LED linear light bar waterproof 5meter deep wide beam angle white RGB light



Key Feature:

1. Work underwater 5meter deep.

2. 316 Stianless steel material.

3. CREE LED Chip.

4. Meanwell power Driver.

5. Wide beam angle 120 degree.

6. CE Rohs UKCA LVD EN62560 IP68 certificate.






Specification

Model No.: MS-WW-RGB-D
LED Q'ty 24pcs/48pcs/96pcs
Light Source Single color or RGB color
Rated Power  12W/18W/24W
Dimension Dia44x1026mm
Material  aluminum & 316 stainless steel
N.W. 2.1kg
Input Voltage 24VDC
Control Mode on/off or DMX512
LED Type CREE
Unit LED Power 3W
Lens-angle 10°/15°/25°/ 45°/ 15°x50°, Option Opal/Frosted diffuse
Life Time 50,000hrs
IP Rating

IP68







Application



This waterproof IP68 LED tube light widely used in garden pool, square pool, hotel pool, fountain and other underwater lighting.



2D Drawings



Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light 0







Control Mode



DMX Control



RGB light is the DMX512 signal input directly,each light address by DMX controller.

The cable is 4wires, DMX+,DMX-,DC24V+.DC24V-,



Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light 1



Power On/off control



It's a very simple connection between the DC24V switch power supply and LED linear light. It is mainly used for showing the mono-color based on the static & constant working status.





Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light 2

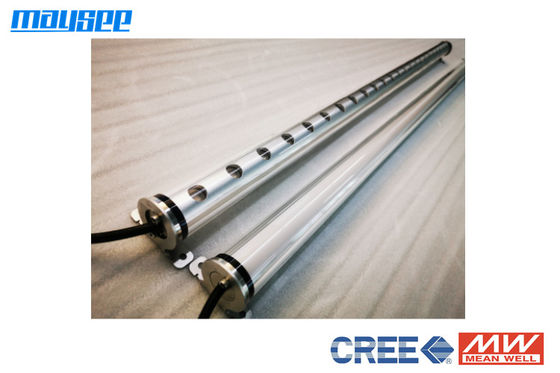

Product photo







Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light 3



Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light 4
