| Place of Origin: | Shenzhen, China |
| Brand Name: | Maysee |
| Certification: | CE/ROHS/IP68 |
| Model Number: | MS-WW-RGB-D |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box or wooden case |
| Delivery Time: | 10-15 working days upon receipt of the deposit |
| Payment Terms: | T/T or WU or Paypal |
| Supply Ability: | 10000pcs per month |
| Material: | Anodized Aluminum+316stainless Steel | Light Color: | R,G,B,W |
|---|---|---|---|
| LED Type: | CREE | Control Mode: | Power On/off Or DMX512, 0-10V Dimming |
| Input Voltage: | 24VDC | IP Rating: | IP68 |
| Rated Power: | 12w/18w/24w | Dimension: | Dia.44x1000mm |
| High Light: | RGB LED linear light color changing,18w LED Wall Washer Lights,RGB color LED Wall Washer Lights |
||
RGB LED linear light color changing work underwater 316 stainless steel material LED bar light
Maysee design RGB color changing LED linear light work underwater, IP68 waterproof rating,316 stianless steel material cover never rust whatever work in the sea or pool,the light install by bracket by screws,the bracket is angle adjustable.The mono color light control by power on/off or can be dimmable by Dimmer, the RGB light control by DMX or Dali control,
Specification
| Model No.: MS-WW-RGB-D | |
| LED Q'ty | 24pcs/48pcs/96pcs |
| Light Source | Single color or RGB color |
| Rated Power | 12W/18W/24W |
| Dimension | Dia44x1000mm |
| Material | aluminum & 316 stainless steel |
| N.W. | 2.1kg |
| Input Voltage | 24VDC |
| Control Mode | on/off or DMX512 |
| LED Type | CREE |
| Unit LED Power | 3W |
| Lens-angle | 10°/15°/25°/ 45°/ 15°x50°, Option Opal/Frosted diffuse |
| Life Time | 50,000hrs |
| IP Rating |
IP68
|
Application
1. Museum and art gallery lighting
2. Sculpture and statue illumination
3. Bars, restaurants, clubs, hotels
4.Waterfall, pool,pond,
5. Landscape lighting
6. Road and bridge lighting
2D Drawings
Control Mode
DMX Control
RGB light is the DMX512 signal input directly,each light address by DMX controller.
The cable is 4wires, DMX+,DMX-,DC24V+.DC24V-,
Power On/off control
It's a very simple connection between the DC24V switch power supply and LED linear light. It is mainly used for showing the mono-color based on the static & constant working status.

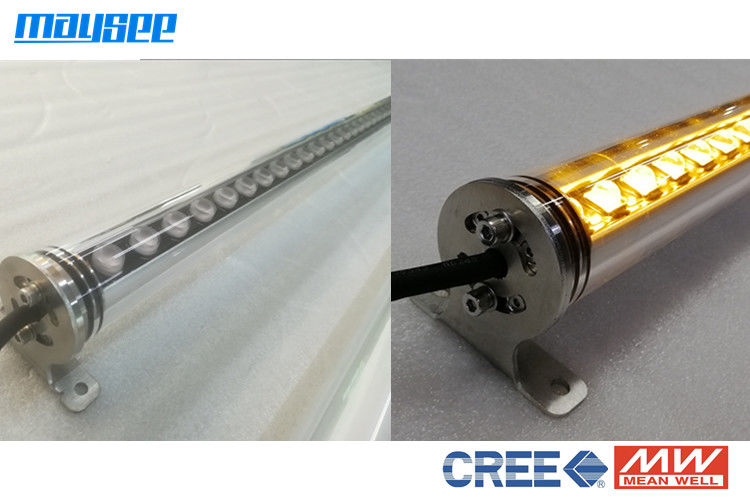

Product photo
