Home ProductsRGB LED Wall Washer

IP66 led inground light , led outdoor wall wash lighting Anodized aluminum

IP66 led inground light , led outdoor wall wash lighting Anodized aluminum

    • IP66 led inground light , led outdoor wall wash lighting Anodized aluminum
    • IP66 led inground light , led outdoor wall wash lighting Anodized aluminum
  • IP66 led inground light , led outdoor wall wash lighting Anodized aluminum

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Maysee
    Certification: CE/ROHS
    Model Number: MS-WW-RGB-E

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: Negotiable
    Packaging Details: Carton box or wooden case
    Delivery Time: 10-15 working days upon receipt of the deposit
    Payment Terms: T/T or WU or Paypal
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Material: Anodized Aluminum Light Color: RGB/R/G/B/W
    LED Type: Cree Control Mode: DMX/on-off
    Input Voltage: 24VDC IP Rating: IP66
    Rated Power: 48W Warranty: 3-year
    Size: 1060mm(L)x85mm(W)x101mm(H) N.W.: 10

    DC24V IP66 outdoor underground light led inground light wall washer lighting



    Specification

    Model No.: MS-WW-RGB-E(48W)
    Electric
    Parameter
    Power 48W
    LED Drive Current 350mA
    Input Voltage DC24V
    Power Efficiency >90%
    Environment
    Parameter
    Humidity 0~85%RH
    Storage Temp.  -40℃~+80℃
    Operating Temp.  -25℃~ +50℃(-13°F ~ +122°F)
    Physical Parameter Dimension 1060mmx85mm(W)x101mm(H)
    Weight 10kg
    Material aluminum & tempered glass
    Housing Color Gray
    IP Grade IP66
    Optical
    Parameter
    LED Brand CREE
    LED Unit Power 3W
    LED Quantity 36pcs
    Light Source 12R12G12B/36R/36G/36B/36W/36Y
    Lens Angle 10°/15°/25°/ 45°/ 15°x50°
    White Color Temperature Warm White(2700~3500K);
    Pure White(3500~5500K);
    Cool White(>5500K)
    LED Wave Length Red: 620 - 630nm;
    Green:520 - 525nm;
    Blue:465 - 470nm;
    Amber:590 - 595nm
    Life Time 50,000hrs
    Controller DMX512 / On-Off





    Description

    MS-WW-RGB-E high power led wall washer fixtures,48w, RGB color, specious design aluminum embedded parts for the installation, it make sure the lgith easy install and have the best performance.

    All of the material used are very good brand, LEDLink lens, Cree led, Meanwell power supply and tempered glass to go for high performance and reliability.

    Maysee provides 3-year warranty and the best competitive technical solution accord with any special requirement from customers.



    Features
    1. Aluminum bracket for installation inground

    2. 48w RGB high power led wall washer fixtures

    3. Easy for cable connection and installation layout
    4. IP66



    Application

    1. Architectural lighting

    2. Downlighting or uplighting for wall wash
    3. Landscape lighting
    4. Road and bridge lighting
    5. Museum and gallery lighting



    Dimension



    IP66 led inground light , led outdoor wall wash lighting Anodized aluminum



    IP66 led inground light , led outdoor wall wash lighting Anodized aluminum

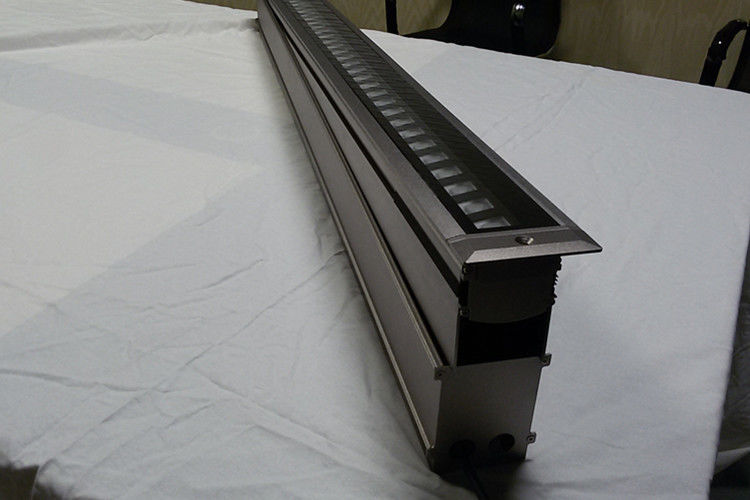

    Pictures



    IP66 led inground light , led outdoor wall wash lighting Anodized aluminum

    IP66 led inground light , led outdoor wall wash lighting Anodized aluminum



    IP66 led inground light , led outdoor wall wash lighting Anodized aluminum



    IP66 led inground light , led outdoor wall wash lighting Anodized aluminum
